QUOTATION
方案

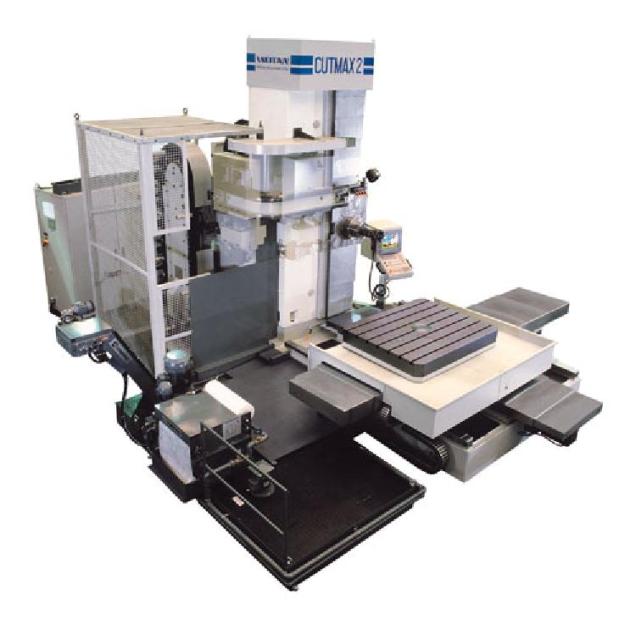

CUTMAX 2TT WOTAN BORING AND
MILLING MACHINE
CUTMAX
2TT 沃唐(WOTAN)镗铣加工中心
with AC-drives and 5 axis Siemens
Sinumerik 840D CNC (X, Y, W, Z, B)
沃唐(WOTAN)卧式镗铣加工中心
型号:CUTMAX2TT
交流伺服驱动,5轴西门子840D数控(X,Y,W,Z,B)
标准技术规格
WORK-SPINDLE
工作主轴 |
|
|
|
|
|
|
- Spindle Diameter 主轴直径 |
|
|
|
mm |
|
120 |
- Tool holder 刀柄锥度 |
|
|
|
CAT |
|
50 |
- Tool-Draw bolt 拉钉 |
|
|
|
CAT |
|
50 |
- Boring Spindle taper 镗杆内孔锥度 |
|
|
|
ISO |
|
50 |
- Milling Spindle tool mount 铣轴刀具安装锥度 |
|
|
|
ISO |
|
60 |
- Spindle speed range, with 3
stages 主轴变速范围,3档 |
|
|
|
|
|
inf.
Variable 无级变速 |
- Spindle speed range 主轴转速范围 |
|
|
|
rpm |
|
20-3000 |
- Spindle torque – See
power/torque chart 主轴扭矩 |
|
|
|
Nm |
|
3000 |
|
|
|
|
|
|
|
TRAVELS 各轴行程 |
|
|
|
|
|
|
- Boring spindle longitudinal
travel (Z) 镗杆伸出(Z轴) |
|
|
|
mm |
|
600 |
- Headstock vertical travel (Y) 主轴箱垂直行程(Y轴) |
|
|
|
mm |
|
1700 |
- Table cross travel (X) 工作台横向行程(X轴) |
|
|
|
mm |
|
1800 |
- Table longitudinal travel (W) 工作台纵向行程(W轴) |
|
|
|
mm |
|
1370 |
|
|
|
|
|
|
|
ROTARY TABLE (*) 工作转台 |
|
|
|
|
|
|
Rotary table
size 转台尺寸 |
|
|
|
mm |
|
1400 x 1600 |
Supporting
diameter 支撑直径 |
|
|
|
mm |
|
970 |
T-Slots
(table center for reference) T型槽(工作台中心为参考基准) |
|
|
|
mm |
|
22 H7 |
Number of
Slots T型槽个数 |
|
|
|
|
|
9 |
Distance
between slots T型槽间距 |
|
|
|
mm |
|
150 |
Max. table
load (approx.) 工作台最大承重(约) |
|
|
|
kg |
|
6000 |
Bore at
table center 工作台中心孔直径 |
|
|
|
mm |
|
100 H7 |
Depth of
bore at table center 工作台中心孔深 |
|
|
|
mm |
|
30 |
|
|
|
|
|
|
|
FEEDS 进给 |
|
|
|
|
|
|
- Feed range for boring spindle
(Z) 镗轴进给速度范围(Z轴) |
|
|
|
mm/min |
|
1-5000 |
- Spindle rapid traverse Z轴快速移动 |
|
|
|
mm/min |
|
6000 |
- Feed range for X, Y and W axes X,Y,W轴进给速度 |
|
|
|
mm/min |
|
1-5000 |
- Rapid traverse for X, Y, W axes
X,Y,W轴快速移动 |
|
|
|
mm/min |
|
10000 |
- Table feed range B-axis 转台进给速度(B轴) |
|
|
|
rpm |
|
0-2,5 |
(*) Other table options available
Accuracy (VDI/DGQ
3441) 精度(根据VDI/DGQ 3441 标准) |
|
|
|
|
- Position accuracy of X, Y and W
axes X、Y和W轴定位精度 |
|
mm |
|
0,010 |
- Repeat accuracy of X, Y and W
axes X、Y和W轴重复定位精度 |
|
mm |
|
0,005 |
- Position accuracy of Z axis Z轴定位精度 |
|
mm |
|
0,015 |
- Repeat accuracy of Z axis Z轴重复定位精度 |
|
mm |
|
0,008 |
- Position accuracy of B axis B轴定位精度 |
|
arcsec |
|
10 |
- Repeat accuracy of B axis B轴重复定位精度 |
|
arcsec |
|
3 |
DRIVES 驱动 |
|
|
|
|
|
|
|
-
Total installed power 总装机容量 |
|
|
|
kVA |
|
85 |
|
-
Nominal power 额定容量 |
|
|
|
kVA |
|
65 |
|
-
Main AC spindle drive 交流主轴电机功率 |
|
|
|
kW |
|
30 |
|
-
Individual AC drives for each axis (D T = 60K) 各坐标轴伺服驱动扭矩 |
|
|
|
Nm |
|
22.4 |
|
|
|
|
|
|
|
|
|
Installation Area
安装面积 |
|
|
|
|
|
|
|
-
Area L x W x H 长×宽×高 |
|
|
|
m |
|
5.7x4.3x4.7 |
|
-
Net weight of the basic machine (approx.) - 基本配置机床净重(大约) |
|
|
|
kg |
|
17,570 |
|
The right to
change technical specifications is reserved.
我们保留修改技术规格的权力。
STANDARD FEATURES:
机床标准特性:
The machine electrics are designed and constructed to meet
VDE 0113 standards and are arranged for operation off 380 or 460 V, 3 phase
50/60 Hz main supply. The main spindle is driven by a variable frequency
controlled AC motor. The motor meets IP 54 protection standards.
机床的电气的设计和构造按照德国VDE 0113 标准,可以选择三相380V 50HZ或三相460V 60HZ主操作电源。主轴是由变频控制交流电机驱动。电机保护等级为IP54。
Drives: all axes (4 linear and 1 rotary) are
driven by AC variable frequency controlled servo motors. IP 64 protection
standards.
驱动:各轴(4个线性轴和1个旋转轴)是由交流变频伺服电机驱动。电气保护等级为IP64。
The AC servo
motors used to drive all axes have the following characteristics:
所有轴采用交流伺服电机驱动,具有如下特点:
ü High power/weight ratio
高功率/重量比
ü Low inertia, high servo response
低惯量,高伺服响应
ü High safet against demagnetizing
高可靠抑制退磁
ü Tolerance to high temperatures -
thermostatic protection
高温度偏差—恒温保护
ü High linearity between current and
conjugate
高线性
ü Low maintenance – brushless
低维护—无刷
ü Low acceleration and braking times
低加速和制动时间
ü Protection grade IP64
保护等级IP64
CNC Siemens Sinumerik
840D (see description below)
数控系统为西门子840D(见后详细描述)
Measuring equipment:
测量反馈装置
The 3 linear axes (X,
Y and W) are equipped with precise Heidenhain linear scales type
LS 186C.
3个线性轴(X,Y,W)定位采用精密的海德汉线性光栅尺,型号为LS186C。
A rotary encoder
provides positional data for the Z axis.
Z轴(镗杆)定位采用海德汉旋转编码器。
A ROD 780C rotary encoder
provides feedback in the B rotary axis.
B轴旋转定位采用型号为ROD 780C的旋转编码器。
Hardened ball screws and pre-tensioned double ball nuts for
the 4 linear axes.
四个线性轴都采用经硬化处理的滚珠丝杠和经预载的一对球丝母组成的丝杠副。
Automatic hydraulic
clamping for the
rotary table.
工作转台采用自动液压卡紧。
Power Draw bar for locking and releasing steep taper
ISO 50 tooling.
ISO50刀具采用动力拉杆锁紧和释放。
Lubrication of ways
and ball nuts is controlled
automatically by a timer integrated on the machine PLC software and can also be
activated from a push button in the control panel or through M function on the
CNC user program.
导轨和滚珠螺母副的润滑有内置在机床PLC 软件内的定时器自动控制,也通过控制面板上的按扭或通过数控程序的M功能实现
The machine is prepared for further integration of a flood coolant system and separate tank for coolant (against add. price).
该机床根据不同的价格(见选项)可配置各种刀具和工件冷却系统。
Table centering and
positioning accuracy
is assured through a pre-tensioned precision roller bearing.
通过一个经预紧的精密的滚柱轴承保证了工作台定心和定位精度。
Combined roller
guides for the
headstock, cross and saddle slides.
主轴箱,十字滑座及床鞍的滑动采用复合滚动导轨。
Hardened
guide ways - WOTAN System
硬化导轨(沃唐制造)
The machine's main way and
guide surfaces consist of 4 mm hardened (HRc 60 ± 2) plates let into the cast
iron which are then precision ground. These inserts are not only provided for
the load carrying surfaces but also for the way guide sides.
该机床的主要导轨表面都嵌入了硬度为HRc 60 ± 2 经研磨的4mm厚的特殊金属材料。不仅在导轨的表面,而且导轨的侧面都嵌入了此类材料。
The mating surfaces of the headstock, cross slide, bed
slide and table are lined with a highly durable, low friction, non-metallic
material.
主轴箱,十字滑块,床身滑块和工作台的啮合面都贴有非常耐磨的,低摩擦的非金属材料。
Machine bed
床身
The main bed contains
the four ways that support the table saddle in the W axis. This one piece four ways
bed construction provides a very stable platform for the table X and W motions,
and avoids the alignment problems associated with machines using separately
mounted outrigger type table supports.
主床身有4根导轨支撑工作台滑座,做W轴运动。该一体的四导轨床身结构为工作台X和W轴的运动提供一个非常结实稳定的平台,从而避免了由于机床使用独立的悬挂梁式工作台支撑而需要调整的问题。
立柱
The column of the machine is made of a
rigidly designed welded structure to provide good vibration damping and
precision. The design provides high rigidity and excellent dynamic performance.
The column provides the headstock vertical travel y-axis. The headstock
counterweight is mechanical with two chains.
立柱由高钢性设计焊接结构制造,可提供高抗振性和高精度。该设计可提供高刚性和极佳的动态性能。在立柱上提供了主轴箱垂直移动的Y轴。主轴箱的平衡有由机械结构和双链条实现。
Telescopic steel way
covers between
column and table, table and bed end (W) as well as on each side of the table
for the cross travel (X) and for the vertical guide ways and ball screw
protection (Y).
X,Y,W各轴都采用伸缩式钢质导轨护罩。
The
headstock is connected to an oil cooling equipment to provide
thermal stability for the spindle system. The unit consists of a refrigeration
cooler, heat exchanger with vaporizer, circulating pump and thermostatic
control in order to keep the temperature in the spindle system constant.
主轴箱内装有使主轴系统恒温的油冷装置。该装置由一个制冷设备,热交换器和蒸发器,循环泵以及温度调节装置组成,以保证主轴系统恒温。
CNC ROTARY TABLE (B-AXIS)
数控转台(B轴)
The built-in rotary table is an
important productive feature of the machine. The table is mounted on the cross
slider and runs on a large 1550 mm supporting diameter, centered with a
pre-loaded high precision roller bearing. An independent ROD 780C rotary scale mounted at the table
center feeds back very precise actual table position data in 360 degrees with a
programming resolution of 0.001 degree. The anti-backlash hardened worm and bronze
worm wheel transmission allows accurate contouring feed control in the
"B" axis. The table is clamped hydraulically.
内置转台为该机床的一大特点。工作台安装在横向滑板上,并且在一个1550毫米直径大的,中心装有预加载高精度滚柱轴承的支撑上转动。工作台中心的ROD 780 C 旋转编码器在360度内提供工作台位置的高精度反馈,可编程分辨率为0.001度。经消除隙和硬化处理的蜗母和铜制蜗轮传动,允许B轴进行高精度轮廓进给控制。工作台由液压方法卡紧。
Column mounted work
light: A work light
is provided on the column and can be controlled by a switch on the control
panel for machining area illumination.
立柱上的工作灯:立柱上装有一个工作灯用于加工区域的照明,它由控制面板上开关控制。
Standard color - two component epoxy paint:
agate gray RAL 7038 /
basal gray RAL 7012 / blue RAL 5017
标准颜色-用两种成分组成的环氧树脂漆。玛瑙灰 RAL 7038,玄武岩灰色RAL 7012,蓝色RAL5017。
The machine is tested to DIN 8620 using the tighter tolerance
specifications. These demanding
values assure long-term precision and reliability.
机床的测试根据DIN8620标准采用紧密的公差规格。这些近乎苛刻的公差数值确保了机床长期运行的精度和可靠性。
Note:
注:
The values/data
mentioned are only for information. They are subject to change with machine
design improvements.
上面提及这些数值和数据仅仅是一种信息。它们随着机床设计的改进会有所变化。
西门子840D数控系统
SINUMERIK 840 D
with latest edition. This CNC can control X, Y, Z, W, B
five axes and any four of five axes can be combined for operation for feeding.
采用西门子840D最新版的数控系统。数控系统能控制X, Y, Z, W,
B并且五轴中任意四轴联动。
1.
Digital control up to 31 axes depends on the chose CPU – 32 bits processor.
32位CPU可使数控系统最高可控制31轴
2.
CNC users memory of 256 Kbytes. Expansible up to
2,5 Mbytes depends on the chose CPU.
256Kb数控高速缓存,根据选用不同的CPU,可达2.5Mb.
3.
Windows
operational system on
PCU50, 2G to 4G byte of free storing memory for
programs and data. At present we offer Windows XP or NT.
基于PCU50,模块的 Windows 操作系统, 可提供2G to 4G程序或数据存储空间。目前,我们可以提供Windows XP 或Windows
NT 操作系统。
4.
NC programming commands with accessibility to load read and write into
machine data (NC, MD), PLC machine data (PLC, MD), setting data, tool
compensation, zero offsets, math functions (+, - , x, ÷ and square root, as well as
trigonometric functions).
数控程序指令可直接进行读写机床数据、PLC机床数据、设置参数、刀具补偿、零点偏移、数学公式(+, - , x, ÷ 和开方根,以及三角函数)。
5.
Linear and
circular interpolation
直线和圆弧插补
6.
Operator
interface under MS Windows with an easy to use interactive programming facility
with a 2D/3D simulation for program check.
基于 Windows NT 的操作界面,操作者可运用交互式编程工具对二维/三维模拟的程序进行核对。
7.
Metric or inch
measuring system
公制或英制测量系统
8.
Chamfer and
radius inclusion, multipoint definition
倒角和半径混合编程,多点定义
9.
Machine cycles
机床功能循环
10.
Drilling and
tapping cycles (G81-G89)
钻削和攻丝循环(G81-G89)
11.
Milling cycles
铣削循环
12.
Rectangular
and circular pockets cycles
直角和圆腔循环
13.
Contouring
cycles
轮廓循环
14.
Measuring
cycles
测量循环
15.
User
programmable cycles
用户编程循环
16.
Tool
compensation
刀具补偿
17.
Tool radius
compensation
刀具半径补偿
18.
Dry Run
federate
空运行
19.
Liquid crystal
monitor TFT 10,4"
液晶显示器TFT 10,4"
20.
Softkey menus
软菜单
21.
NURBS Interpolation, high speed pre-reading
sequence section of more than 128 MB
NURBS插补,高速预读128MB以上程序段。
22.
Failures
diagnostics on the NC and on the
PLC by the interface, with texts on the screen.
数控故障诊断和通过接口实现PLC诊断,并在屏幕上以文本显示
23.
3D
interpolation
三维插补
24.
Man-machine interaction programming and cutting
data expert system
人机交互式编程和切削数据专家系统
25.
Integrated PLC
内置式
26.
Electronic
handwheel
电子手轮
27.
Graphic
simulation
图形模拟
28.
Program
editing simultaneous with the machining
加工同时编程
29.
Mill and drill
configuration by polar coordinates and sub routines.
通过极坐标和子程序实现铣削和钻削功能
30.
Rigid tapping
and feed / resolution
刚性攻丝和进给/旋转
31.
Spindle
orientation (M19)
主轴定向(M19)
32.
Functions M
and T
M和T功能
33.
Helical
interpolation
螺旋插补
34.
Re-start of
the program
程序重起
35.
RS 232 data
transfer communication
RS 232数据传输通信接口
36.
Digital system
drives integrated SIMODRIVE 611 D
SIMODRIVE 611D集成式数字驱动系统
37.
Floppy drive
to 3 ¼” floppy disks
3 ¼”软驱
38.
Up to 2
measuring in process probes connecting possibilities
可连接两个测头
MACHINE CONFIGURATION
机床基本配置
-
CNC Numerical Control
Siemens 840D
西门子840D数控系统
-
Increased
rotary table size 1400x1600 mm
增加的工作转台1400×1600mm
-
AC Drives
(Brushless) for 5 axes and spindle
5个交流驱动(无刷)和主轴
-
Automatic
lubrication
自动润滑
-
Automatic gear
change
自动齿轮换挡
-
Work light
工作灯
-
Fixators and
leveling devices
地脚螺栓和调平垫铁
-
Painting:
Agate Gray RAL 7038, Basalt gray RAL 7012 and Blue RAL 5017
颜色:机床标准颜色:玛瑙灰 RAL 7038,灰色RAL 7012,蓝色RAL5017。
-
User’s Manual
用户手册
-
Maintenance
Manual
维修手册
-
Programming
Manual
编程手册
-
NC Operating
Manual
数控操作手册
-
Electrical
plans
电器图
-
Hydraulic and
Pneumatic Plans
液压和气路图
-
Foundation
Plan
地基图
OPTIONAL
FEATURES AND ACCESSORIES
Add. price
选项和附件(不包括在基本报价中)
2TT-001 FLOOD COOLANT EQUIPMENT
外部刀具冷却装置
consists of an electric pump and separate tank
for coolant including complete electrical equipment
and
plumbing.
是由泵和独立的储液柜组成,包括完整的电气设备和管路。
|
Capacity
of the tank 储液柜容量 |
500 lt. |
132 gal |
|
Pump delivery 泵流量 |
150 lt./min |
39.6 gal/min |
|
Pressure
泵压力 |
0,6 bar |
8.5 psi |
|
............................................................................................. |
2TT-005 CHIP CONVEYOR + FLOOD COOLANT
EQUIPMENT
排屑器+外部刀具冷却系统
consists of a hinged belt integrated
with
the Flood Coolant Equipment
包括铰接的皮带式排屑器综合了外部刀具冷却系统。
|
................................................................................................. |
2TT-010 CHIP CONVEYOR + COOLANT THROUGH
SPINDLE (11 bar)
排屑器+通过主轴冷却(11bar)
consists of a hinged belt integrated with the
Flood Coolant Equipment and Coolant Through Spindle
with
lamella filter and rotor pump
包括铰接的皮带式排屑器综合了外部刀具冷却系统和带有薄片式滤器,转子泵的通过主轴冷却系统。
|
|
Internal 内部 |
|
|
|
|
|
Pump
delivery 泵流量 |
30 lt./min |
7.9 gal/min |
|
|
|
Pressure
泵压力 |
11 bar |
159.5 psi |
|
|
|
External 外部 |
|
|
|
|
|
Pump
delivery 泵流量 |
150 lt./min |
39.6 gal/min |
|
|
|
Pressure
泵压力 |
0,6 bar |
8.5 psi |
|
|
................................................................................................. |
||||
Note:
we recommend the use of machine enclosure
注:我们推荐使用封闭式机床护罩。
2TT-015 CHIP CONVEYOR + COOLANT THROUGH
SPINDLE (20 bar)
排屑器+通过主轴冷却(20bar)
consists of a hinged belt integrated with the
Flood Coolant Equipment and Coolant Through Spindle
with
paper filter and spindle pump
包括铰接的皮带式排屑器综合了外部刀具冷却系统和带有纸质滤器,轴流泵的通过主轴冷却系统。
|
|
Internal 内部 |
|
|
|
|
|
Pump
delivery 泵流量 |
30 lt./min |
7.9 gal/min |
|
|
|
Pressure
泵压力 |
20 bar |
290psi |
|
|
|
External 外部 |
|
|
|
|
|
Pump
delivery 泵流量 |
150 lt./min |
39.6 gal/min |
|
|
|
Pressure
泵压力 |
0,6 bar |
8.5 psi |
|
|
................................................................................................. |
||||
Note: we recommend the use of machine enclosure
2TT-025 SPLASH GUARDS FOR STANDARD TABLE
标准工作台防飞溅护罩
|
................................................................................................. |
AUTOMATIC TOOL CHANGER
自动刀库
|
Automatic
tool changing using a chain magazine with variable or fixed coded tool pockets. Tool change
through M, G or customer specific code 使用链式刀库,刀具自动交换,随机或固定刀位,刀具交换通过M,G代码或用户特定代码实现。 |
|
|
Tool mount 刀具安装 |
ISO 50 |
|
Max. tool
dia. – fully loaded 刀具最大直径-满载 |
120 mm |
|
Max. tool
dia. – free spaces 刀具最大直径—相邻刀位都为空 |
360 mm * |
|
Max. tool
length 最大刀具长度 |
500 mm |
|
Max. tool weight 最大刀具重量 |
35 kg |
|
Average tool
weight using all pockets 使用所有刀位时平均刀具重量 |
20 kg |
|
l
Oversized
bridge type tools are possible 可使用超大型桥式刀库 |
|
|
(> 360 mm) subject to
confirmation. 刀具直径
> 360 mm需从厂家确认 |
2TT-110 |
Chain
magazine 40 tool storage 链式40把刀库 |
|
|
2TT-111 |
Chain
magazine 60 tool storage 链式60把刀库 |
2TT-112 |
Chain
magazine 80 tool storage 链式80把刀库 |
2TT-125 ANGULAR MILLING HEAD
角铣头
With intermediate flange, to be mounted
to the face of the headstock by a centering
ring
and four screws.
带中间法兰,通过定心环和四个螺丝可安装在主轴箱端面。
Note: the tool clamping is manual
注: 使用手动卡紧
|
Tool mount 刀具安装 |
ISO 50 |
ISO 50 |
|
Swivel range
旋转范围 |
360° |
360° |
|
Distance
between headstock face and spindle
center line 主轴箱端面到主轴中心线的间距 |
520 mm |
20.4 in |
|
................................................................................................. |
2TT-120 MACHINE ENCLOSURE
封闭式机床护罩
For the protection of the machine against splashes and
chips. An enclosure with automatic sliding doors
and
safety switch.
防飞溅和切屑保护机床。封闭式护罩装有自动滑门和安全开关。
|
................................................................................................. |
2TT-121 MACHINE WITH ATC & PALLET
CHANGER ENCLOSURE
机床封闭式护罩包括刀库和交换工作台
|
................................................................................................. |
2TT-140 SPINDLE SUPPORT BEARING
主轴支撑轴承座
mounted to the face of the headstock by a
centering ring and four screws.
Supports the boring spindle directly behind
the tool.
轴承座通过定心环和四个螺钉安装在主轴箱的端面。以支撑刀具后面的镗杆。
|
Spindle dia 主轴直径 |
120 mm |
4.7 in |
|
|
Extension 扩展直径 |
380 mm |
14.9 in |
|
|
Outer dia 外部直径 |
260 mm |
10.2 in |
|
|
................................................................................................. |
2TT-115 DOUBLE PALLET CHANGER
双托盘交换站
consists of a two load/unload
stations in front of the machine bed where each pallet changing position will
be on the travel limits of the x axis. The pallet stations are moved to the
load/unload station by a hydraulic cilinder and the pallet load/unload is
realized by a chain system with sensors, index positions and index pin.
由在机床前面的一个双托盘装卸站组成,每个托盘交换位置位于X轴形成的极限位置。托盘站移动到装卸位置通过液压缸完成,托盘的装卸有带传感器,分度位置和分度销钉的拖链完成。
The pallet, when
loaded on the machine is indexed by two precise positioning pins and after positioned
it is clamped by two “T” rails loaded with sets of pring plates.
当托盘被加载到机床时,由两个精密定位销钉定位,定位后卡紧,托盘通过两个T轨道引导。
|
Double pallet station 双托盘工作站 |
6000 kg |
|
|
Table surface
工作台尺寸
|
1400 x 1600 mm |
|
|
...................................................................................................... |
2TT-160 AIR CONDITIONER FOR ELECTRIC CABINET
consists of a air conditioning
unit installed on the electric cabinet to keep the temperature inside the
cabinet under control what will increase the electronic equipment life time.
包括安装在电器柜上的空调装置,以保持电器柜内的温度,增加电器设备的使用寿命。
|
...................................................................................................... |
2TT-161 RENISHAW TOUCH PROBE MP3 (For large machines with
automatic
tool changing)
Robust touch-trigger probe with large over-travel
range. This probe features RADIO signal transmission module RMP, two (2) RMM
receivers; MI14 interface and PSU3 power supply. It is required when an
automatic tool changer is specified.
Renishaw inspection software is included.
雷尼绍接触式测头,可过冲接触。该测头采用无线信号传输器,型号为RPM,两个RMM接收器,MI14接口和PSU3电源。当机床安装了自动刀库后需要该测头。雷尼绍检测软件也同时包括。
|
...................................................................................................... |
GENERAL CONDITIONS
通用条款
DELIVERY
The offered basic machine can be
delivered within 6 months, ex-works, subject to prior sales, after
receipt of firm order and down payment.
Delays caused by changes in the purchase order and any costs caused by
such delays will be charged additionally.
在收到定单和定金后6个月内机床可发货出厂。由于定单变更和付费延迟所造成的机床交货延误,将收取额外费用。
PRICE BASIS
The prices
quoted are valid as of July 6, 2004 and are C&F port of entry. Inland transport, unloading of the machine and rigging costs
onto your site are for your account and risk.
报价于2004年7月6日生效,为C&F中国入境口岸(港口)价格。在用户处的内陆运输,卸货和帮扎费用为用户承担,各种风险也由用户承担。
Any local
taxes such as sales taxes, etc., are not included in our prices and will be
charged separately if required.
任何当地裞费没有包括在报价中,如果需要可以增加到报价中。
The prices
quoted are firm for 45 days from the date of this quotation.
报价有效期为45天。
PAYMENT TERMS
付款条款
According to
Agreement.
可根据双方协议
WARRANTY
保修
The warranty
of machine, numerical control and accessories is valid during a period of 12
(twelve) months with one working-shift, commencing as of the final acceptance
test at your plant.
机床、数控系统和附件的保修期为机床最终验收后的12个月
This warranty
does not include components subject to wear, such as: relays, sensors,
batteries, electric fuses, lamps, belts, roller bearings and alike.
保修不包括任何易磨损部件,如继电器、传感器、电池、保险、灯泡、皮带、滚柱轴承等。
Note: The above warranty is only
valid under the following conditions:
注意:以上描述的保修在以下条件下适用
-
Variations of
voltage (oscillation) must not exceed ± 5% (without peak power). If this condition
cannot be guaranteed, installation of a voltage stabilizer will be necessary.
电压的波动不超过± 5%(不超过峰值电压)。如果不能保证该条件,需安装稳压电源。
-
Voltage drop
not exceeding a duration of 20 millisecond.
电压下降时间不超过20毫秒
-
Environmental
conditions should be normal (without excess humidity and without ambient
corrosive or other similar conditions, etc.)
环境温度正常(不能过湿和不能在腐蚀环境下或相似状况)
-
Max.
temperature 45°C.
最大温度45°C。
PRE-ACCEPTANCE AT OUR FACTORY
在WOTAN公司预验收
Should you
wish to witness acceptance tests in our works please advise us of this at least
4 weeks before the quoted delivery.
在发货前4周通知我们需要进行预验收
MACHINE INSTALLATION
机床安装
After you have
unloaded the machine, brought it to its intended operating location, unpacked
and cleaned it, please advise us so we can dispatch our field engineer. We will provide you with certified
foundation plans within 60 days after receipt of your order or sooner in the
case of stock machines.
当用户卸下机床,并将机床运到开放位置,拆箱并清洁后,请通知我们,以便我们派出安装工程师。我们将在收到定单后60天内提供地基图纸,如果我们有存货机床将会更快。
Our field
service engineer will supervise the erection of the machine with help from your
plant personnel (cranes, forklifts, etc.). He will check all geometric alignments and operational features
so that the machine can be accepted and placed in operation.
我们的现场服务工程师将会监督机床部件的吊装,吊装需由用户帮助(吊车、插车等)服务工程师将会检查所有的几何精度和机床功能,以便机床能顺利投产。
The days required for this work are
included in the price of the machine.
Should you request additional service this should be specified in the
purchase order and will be billed separately.
安装工作所需的费用已经包括在机床总价中了,如果用户需要额外的服务需单独付费。
N.B. The machine connection to the main
electricity supply must only be carried out in the presence of our service
engineer.
注意:将机床连接到主电源必须在我们服务工程师在场的情况下进行。
TRAINING
培训
a)
Machine Operator.
机床操作培训
We have included in
our price 3 days of operator training on site.
我们已经包括在现场3天的操作培训
b)
Maintenance.
维护培训
Our service engineer will
instruct your plant service personnel regarding preventive maintenance during
installation of the machine.
我们的服务工程师将会在机床安装期间指导用户的维修人员进行预防性维护培训。
c)
Application
应用培训
An applications
engineer will provide 5 days of programming and operator training for the CNC
control
应用工程师将提供数控系统5天的编程和操作培训。
